Product Description:

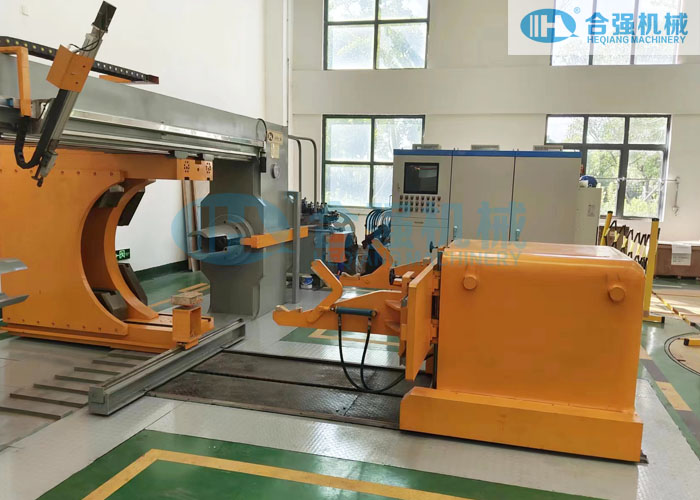

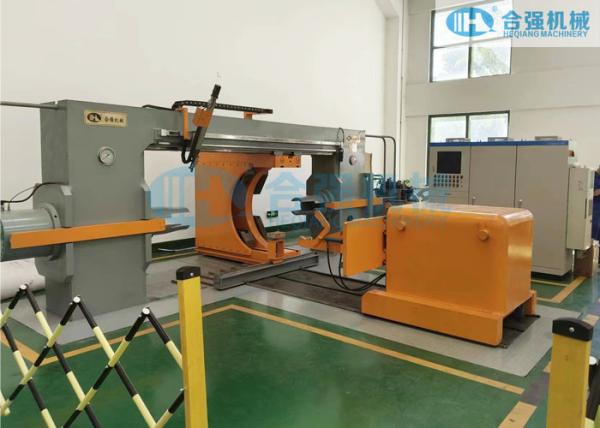

This Fully Automatic Wheelset Press is a horizontal hydraulic wheel press-mounting machine, mainly used for mounting and dismantling of the Metro and coach wheelset wheels, brake discs and gears etc,. The operation is fully automatically controlled by Siemens PLC and AdvanTech industrial PC. Only one operator is required to complete all the operations.
It is made of high-strength steel. Gantry frame structure, with high strength, good rigidity and less deformation. This hydraulic wheel press can be used to press-fit wheelsets quickly and safely, making it the ideal choice for railway wheelset maintenance and repair.
Features:
- A horizontal type hydraulic wheelset mounting and dismounting press
- Double-ended hydraulic cylinders for mounting and dismounting.
- Only one positioning is required to proceed both sides' mounting and dismounting without reversing the axle
- Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy
- Special patented centering devices at both ends of ram cylinders for center hole positioning.
- Movable slider device with replaceable inserts to block the wheels, gears or brake discs for dismounting.
- With a rotaty trolley for wheelset transferring into or out from the press
- Siemens S7-300 PLC and AdvanTech industrial computer to control the operation.
- Automatic mode for production, and manual mode for commissioning and maintenance
- With advanced measurement system and recording system to detect and record the required data and display it on the screen.
Technical Parameters:
| Parameter | Value |
| Product Name | Horizontal Wheelset Press |
| Functions | Mounting and dismantling wheelsets |
| Max. Pressing force | 300 tons |
| No. of ram cylinder | 2 (1 left and 1 right) |
| Piston stroke | 800 mm |
| Pressing speed | 0~5 mm/s, adjustable |
| Pressure sensor accuracy | 0.25%FS |
| Displacement sensor accuracy | 0.01 mm |
| Ram positioning accuracy | ≤ 0.01mm |
| Max. hydraulic system pressure | 315 bars |
| Power supply | 3-PH AC, 380V/50HZ |
| Total installed power | ≤ 30 kW |
| Machine weight | Approx.30 tons |
| Max. Wheelset Weight | 3000 kgs |
| Max. Wheel Diameter | 1100 mm |
| Max. Axle length | 2300 mm |
Applications:
Heqiang Machinery's Wheelset Press is a hydraulic wheel press machine, specially designed for wheelset assembly and disassembly. It is applicable for a maximum wheel diameter of 1250mm, making it perfect for a wide range of applications. Heqiang Machinery's Wheelset Press is ideal for railway maintenance workshops and vehicle production factories.
Customization:
Wheelset Press by Heqiang Machinery
Heqiang Machinery offers a wide range of Wheelset Press products to provide comprehensive solutions for your wheelset maintenance needs. Our Horizontal Press is ideal for mounting and dismounting wheelsets. It is applicable for a maximum wheel diameter of 1350mm, maximum axle length of 2600mm and maximum weight of 8000 kg. With a maximum pressing force of 200-500T for choice, it can meet different production and maintenance requirements.
If you are looking for a reliable and high-quality Wheelset Mount and Dismount Press Machine, Heqiang Machinery can provide you with the perfect solution. Contact us today to learn more about our products and services.
Support and Services:
We are committed to providing our customers with the best possible technical support and service. We provide a comprehensive range of services to ensure that your WheelSet Press product is working optimally.
We provide a range of service options for WheelSet Press products. Our service includes repairs, maintenance and upgrades. We also offer warranties on select products, and our knowledgeable technicians can help you make the most of your WheelSet Press product.
Packing and Shipping:
The package of the Wheelset Press will be Nude package and wooden cases. One set of this type wheel press will be loaded in 1x20'GP and 1x40'HQ containers. We also offer freight prepaid service if required.
